Xususiyatlari

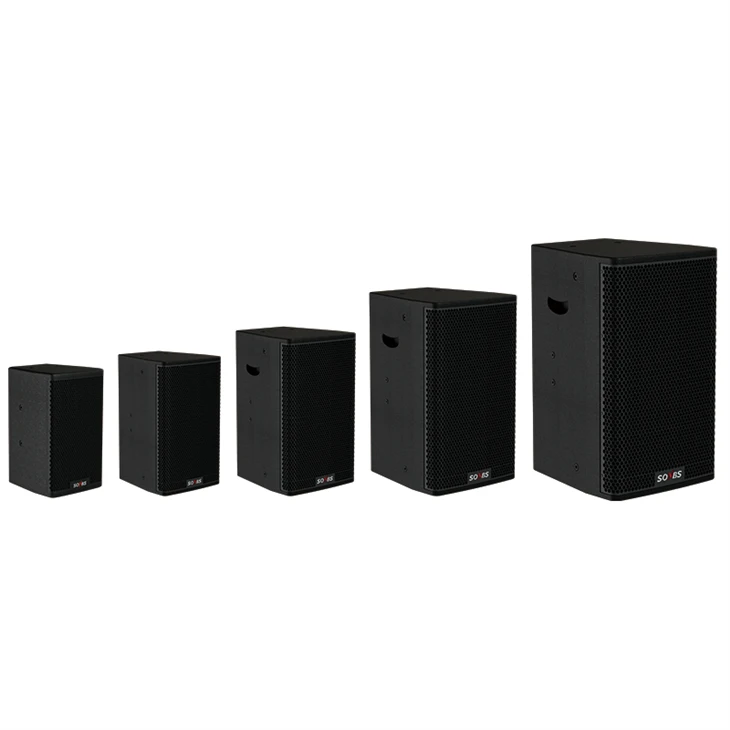

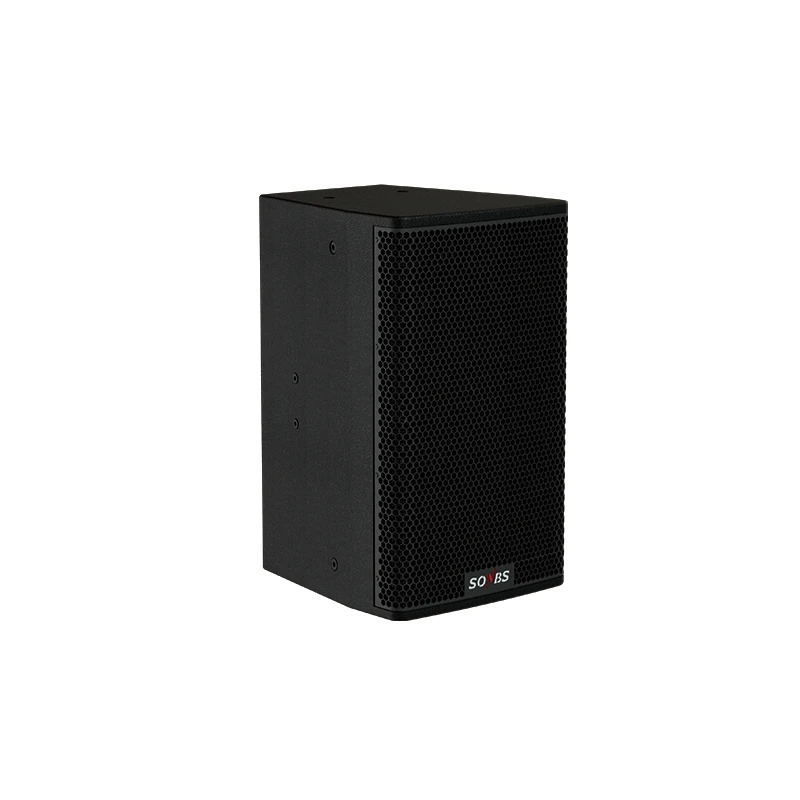

Katta ovoz qutisi tizimining bir qismi sifatida E seriyali ovoz qutisi qutiga, balkon ostiga va sahna labi maydoni ovoz qutisi sifatida o'rnatilishi mumkin. Bundan tashqari, sanoat va tijorat joylarida yuqori aniqlikdagi dispersiya yoki ovozni mustahkamlash tizimi ovoz qutisi sifatida ham foydalanish mumkin.
Texnik parametrlar
|
Model |
SD-6E |
SD-8E |
SD-10E |
SD-12E |
SD-15E |
|
Trebl |
1x25 mm tvit, 25-yadroli ovoz bobini, diametri 1-dyuym |
1x25 mm tvit, 25-yadroli ovoz bobini, diametri 1-dyuym |
1x34 mm tvit, 34-yadroli ovoz bobini, diametri 1-dyuym |
1x44 mm tvit, 44-yadroli ovoz bobini, diametri 1-dyuym |
1x44 mm tvit, 44-yadroli ovoz bobini, diametri 1-dyuym |
|
Bass |
1x6 dyuymli vufer, 25-yadroli ovoz bobini, 100 ta magnit |
1x8 dyuymli vufer, 38-yadroli ovoz bobini, 100 ta magnit |
1x10 dyuymli vufer, 50-yadroli ovoz bobini, 140 magnit |
1x12 dyuymli vufer, 65-yadroli ovoz bobini, 160 magnit |
1x15 dyuymli vufer, 65-yadroli ovoz bobini, 170 magnit |
|
Chastota javobi |
75 Gts-20KHz |
75 Gts-20KHz |
65 Gts-20KHz |
45 Gts-20KHz |
38 Gts-19KHz |
|
Nominal quvvat |
120W |
250W |
350W |
400W |
500W |
|
Eng yuqori quvvat |
480W |
1000W |
1400W |
1600W |
2000W |
|
Sezuvchanlik |
93dB |
95dB |
96dB |
98dB |
99dB |
|
Qarshilik |
8 ohm |
8 ohm |
8 ohm |
8 ohm |
8 ohm |
|
Nurlanish burchagi |
80 daraja (H) × 80 daraja (V) |
80 daraja (H) × 80 daraja (V) |
80 daraja (H) × 80 daraja (V) |
80 daraja (H) × 80 daraja (V) |
80 daraja (H) × 80 daraja (V) |
|
Hajmi (Y × G × D) |
350 × 200 × 220 mm |
400 × 260 × 235 mm |
470 × 300 × 280 mm |
600 × 380 × 360 mm |
715 × 410 × 430 mm |
|
Og'irligi |
5,75 kg |
7,85 kg |
12,05 kg |
20,25 kg |
27,55 kg |
